Home CONTROLLER SP630E All In One LED Controller - 5CH PWM & SPI, Supports WS2812B/WS2811/SK6812/FCOB/5050 RGB/RGBW/CCT, Bluetooth Music Sync Pixels Controller

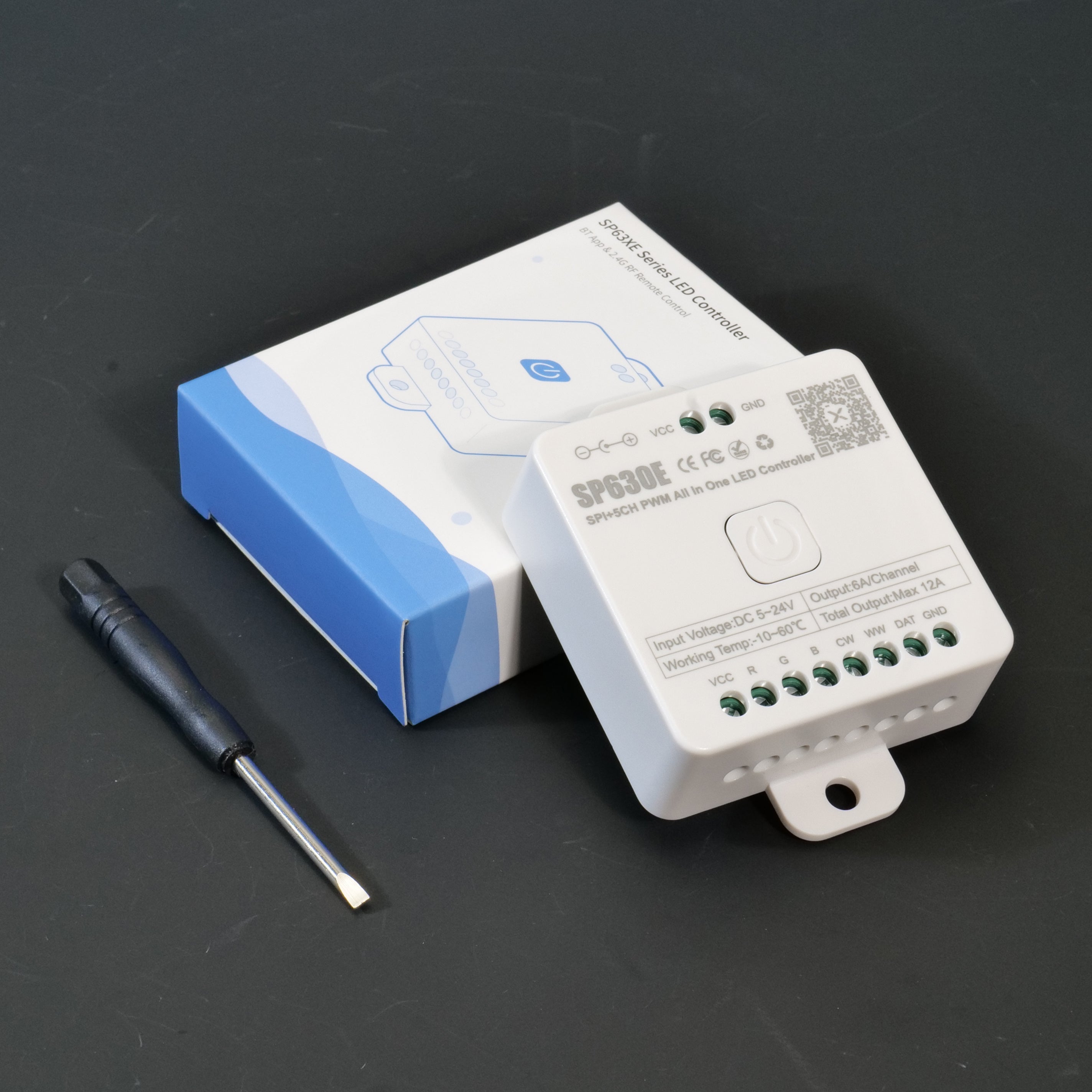

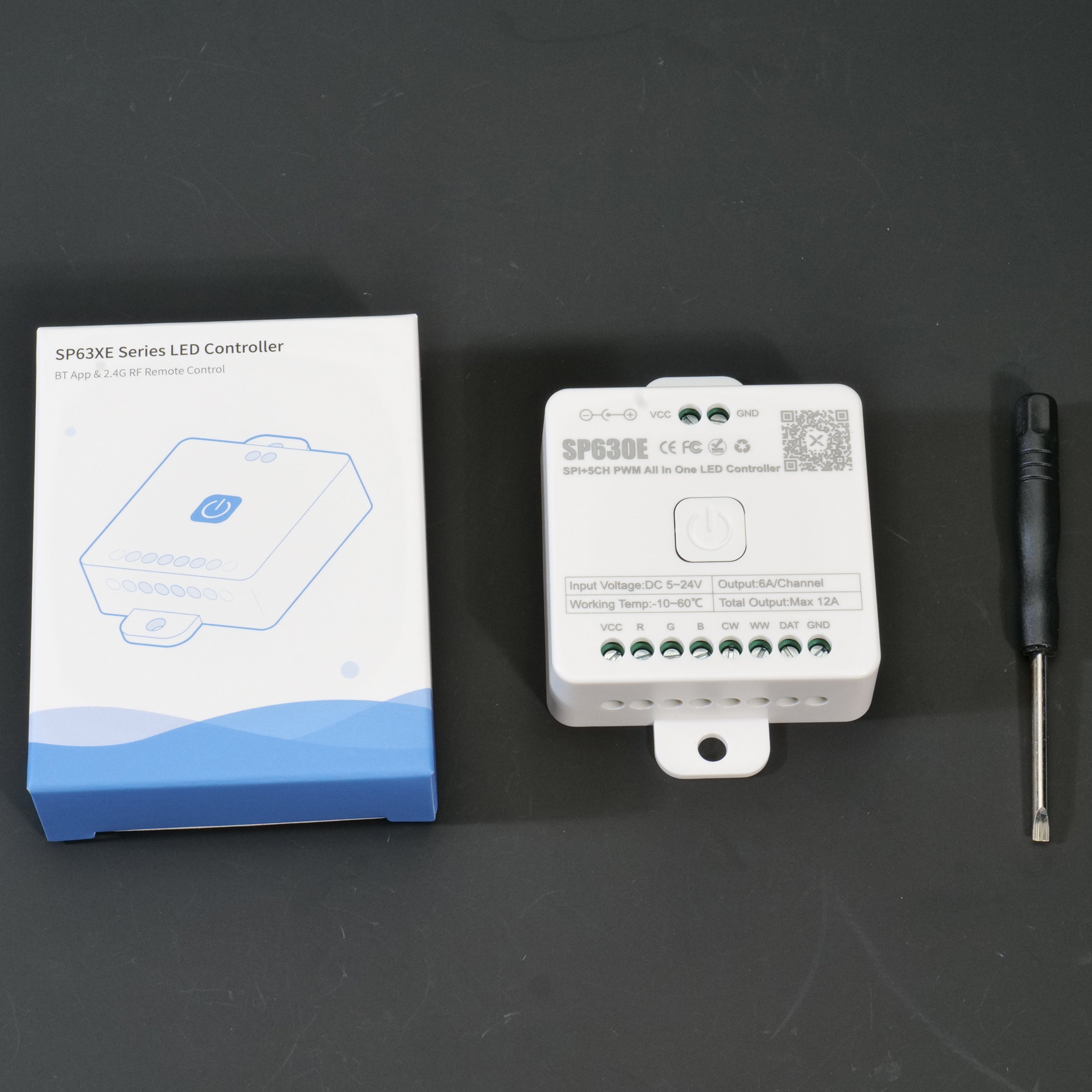

SP630E All In One LED Controller - 5CH PWM & SPI, Supports WS2812B/WS2811/SK6812/FCOB/5050 RGB/RGBW/CCT, Bluetooth Music Sync Pixels Controller
SP630E All In One LED Controller - 5CH PWM & SPI, Supports WS2812B/WS2811/SK6812/FCOB/5050 RGB/RGBW/CCT, Bluetooth Music Sync Pixels Controller
SP630E All In One LED Controller - 5CH PWM & SPI, Supports WS2812B/WS2811/SK6812/FCOB/5050 RGB/RGBW/CCT, Bluetooth Music Sync Pixels Controller
CONTROLLER

SP630E All In One LED Controller - 5CH PWM & SPI, Supports WS2812B/WS2811/SK6812/FCOB/5050 RGB/RGBW/CCT, Bluetooth Music Sync Pixels Controller

$26.83

Quantity

Sku:

SP630E-2025-HSY-01

Category:

CONTROLLER

Tag:
Vendor:

xlhlighting.com

Core Positioning & Compatibility

The SP630E is an all-in-one LED controller integrating SPI and 5CH PWM protocols, designed to work seamlessly with multiple LED types—covering 12 different configurations to meet diverse lighting needs:


  • PWM LEDs: 1/2/3/4/5-channel W (White), CCT (Color Temperature), RGB, RGBW, RGBCCT
  • Addressable LEDs: SPI-based strips (e.g., WS2812B, WS2811, SK6812, FCOB, 5050 RGB/RGBW)
  • Hybrid LEDs: Addressable + PWM combined models (ideal for mixed lighting setups)

Key Features

1. Multi-Control Methods (Flexible for Every Scenario)

  • Bluetooth App Control: Connects to iOS/Android devices for wireless operation.
  • 2.4G Touch Remote: Portable control with intuitive touch interface.
  • 2.4G 86-Type Wall Panel: Built-in style for home/commercial fixed installation.
  • Zone & Unified Control: Divide lighting into 4 independent zones (for multi-room use) or control all devices at once (ALL mode).

2. Rich Scene & Customization Functions

  • Switch Animations: Customize dynamic on/off effects (e.g., fade, flash) and set default power-on states (no need to re-adjust settings after restart).
  • Timers & Personalization: Schedule on/off times, rename devices (e.g., "Living Room Light"), and correct color order (matches different LED strip color sequences).
  • 3 Music Sync Modes:
    • Phone Microphone: Syncs with real-time sound (e.g., voice, instruments).
    • Player Streaming: Links to phone music players (e.g., Spotify, Apple Music) for precise beat matching.
    • On-Board Microphone: Captures ambient sound directly via the controller (no phone needed).

3. Efficient Performance

  • Low-power Bluetooth microprocessor: Ensures stable connection (up to 10m range) and long working life.
  • Wide LED compatibility: Eliminates the need for multiple controllers—one SP630E works for most PWM/addressable strips.

APP Installation & Requirements

Item Details
Supported Systems iOS 10.0 or later; Android 4.4 or later
Download Methods 1. Search "BanlanX" in App Store (iOS) or Google Play (Android).
2. Scan the product’s QR code for direct download.
APP Control Pages 5 dedicated pages for different needs:
- Dynamic: Pre-set moving effects (e.g., rainbow, chasing).
- Static: Fixed colors/brightness.
- Music: Sound-sync modes.
- Custom: Create and save your own effects.
- Setting: Adjust timers, device names, color order.
Smart Adaptation The APP automatically adjusts page content based on your LED type (e.g., RGBW strips show white temperature controls; addressable strips show pixel-level effects).

Important Notes

  • Power Supply: A separate DC power supply (matching your LED strip’s voltage) is required (NOT included with the controller).
  • 2.4G Accessories: Zone control function requires compatible 2.4G touch remote/86-type panel (accessories sold separately or as a bundle).
  • Bluetooth Connection: Ensure your phone’s Bluetooth is enabled; pair only with one controller at a time for stable performance.
